Projects with RABLE4roofs
Weak roofs are no longer an obstacle to solar power projects. Discover innovative solutions to realize solar roof installations without major structural modifications. Our specially developed PV substructure offers a large span and rests on roof beams. Thanks to this extremely rigid construction, the weight is automatically distributed to the roof beams that can carry it, resulting in minimal load on the roof panels. Enjoy shortened project duration and save costs while reducing environmental impact.
Products

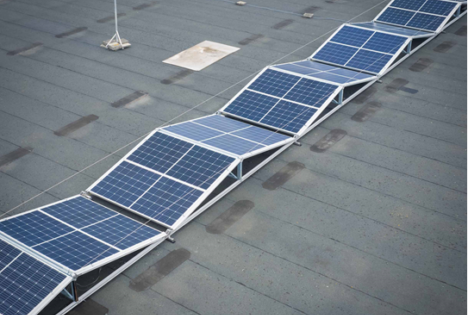

The RABLE substructure is a technologically advanced system designed based on a truss design. This design includes both longitudinal and transverse trussing, resulting in a rigid and stable structure. The unique aspect of this system is the patented tension cable that runs longitudinally, making the system self-supporting.
Thanks to this self-supporting feature, the RABLE substructure can handle a maximum span of 25 meters where the system rests on the existing roof beams or rafters. This ensures no or very limited load on the roof panels.
The RABLE substructure is ballast-free and is mounted on the roof with minimal roof anchor points at the ends of the structure. In fact, the RABLE substructure can already provide a suitable solution for roofs that cannot support more than 7 kg of ballast per square meter, without structural modifications to the roof.
RABLE4roofs / East West
The RABLE4roofs allows for spans of up to 10 meters on roof columns or beams, making the system suitable for (weak) flat roofs. In addition, the efficient unfolding mechanism ensures smooth installation, ideal for roof maintenance or relocation!
RABLE8 / East West
The RABLE8, the revolutionary system that is twice the size of the standard version. Thanks to this size, the RABLE8 can effortlessly realize spans of up to 25 meters on roof columns or beams. With fewer runs, namely one run per 8 panels instead of one run per 2 panels, the RABLE8 generates a higher yield per square meter. Maximize your potential with the RABLE8!
RABLE2GO / East West
The RABLE2go makes it easier than ever to generate your own renewable energy. Our plug-in solar panel set is specially designed to make solar energy accessible to everyone, even if you don't have much space.
Want to know more? Click here!
Easy and quick installation
Downloads
Detailed information
Project Specifications
Project Reginox, Rijssen
RABLE8
19 meter span
5000 panels
106 roof anchors
CBM, Haarlem
RABLE4roofs
to 8 kg/m2 loaded
64 panels
6 roof anchors
Houthavens, Amsterdam
RABLE4roofs
to 12 kg/m2 loaded
112 panels
10 roof anchors
Buijtendijk, Den Helder
RABLE4roofs
to 12 kg/m2 loaded
140 panels
16 roof anchors
Project in Alphen
RABLE4roofs
to 12 kg/m2 loaded
196 panels
10 roof anchors
Voedselbank, Amsterdam
RABLE4roofs
to 8 kg/m2 loaded
248 Solarge panels
18 roof anchors
Soon...
Project in Papendrecht
RABLE4roofs
to 12.5 kg/m2 loaded
108 panels
6 roof anchors
